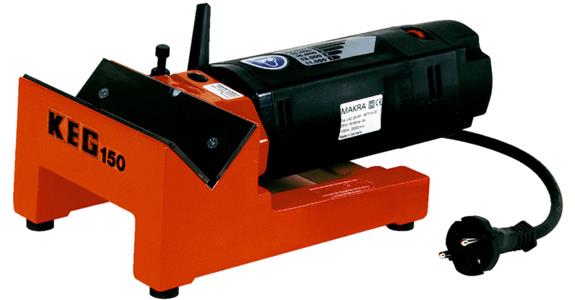

Edge deburring machine KEG 150 flat 1,050 W 3,500-30,000 rpm WxLxH 150x320x110

Edge deburring machine KEG 150 flat 1,050 W 3,500-30,000 rpm WxLxH 150x320x110

---

Nr artykułu: 1092390 201

Cena internetowa:
Pod zamówienie
Dodaj do ulubionych
Min. Ilość zamówienia: 1
Dodaj do koszyka
Opis
Zastosowanie
For chamfering and deburring rectangular metal or plastic workpieces weighing up to approx. 10 kg.
Hobbing process guarantees precise deburring.

Wersja
  • With 2 hardened steel guide rails 40 x 150 mm (W x L) and 2 different supporting edges for minimal or severe workpiece burr formation
  • Can be used for 2 material thicknesses depending on burr formation (position 1: from 4.5 mm, position 2: from 1.0 mm)
  • Chamfer size can be adjusted individually
  • Max. milling depth 5 mm (dependent on material)
  • Collet dia. 8 mm included in scope of delivery
  • Handy, space-saving table-top model
  • With anti-vibration elements for high stability and quiet running
  • Milling spindle with double bearing and steel clamping flange (standard dia. 43 mm) to allow high performance milling
  • Continuous speed control
  • MAKRA milling motor with full-wave electronics
    - Voltage 230 V/50-60 Hz
    - The cylindrical end mill tool is mounted in a collet
    - With swarf collection container and operating tool

Wskazówki
For suitable end mills, see HHW catalogue, volume 1 (Machining + Clamping technology):
- for aluminium and plastics: Art. no. 1016542 110
- for VA and highly heat resistant steels: Art. no. 1016551 103
- for hardened steels up to HRc 52: Art. no. 1016824 105
- for short chipping non-ferrous metals: Art. no. 1016616 203

Dane techniczne

Marka: ---
