Nr artykułu: 1001359 051
Cena internetowa:
Cena katalogowa:
Oszczędzasz:
Wyprzedane
Min. Ilość zamówienia: 1
Opis
ZastosowanieFor measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

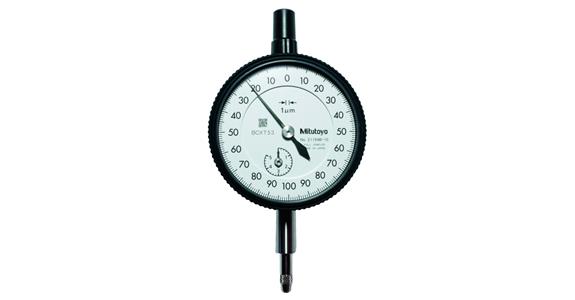

Wersja- Compact dial gauge with outer ring, dia. 57 mm
- Gauge slide: carbide-tipped, thread: M 2.5 x 0.45 mm
- The design prevents the ingress of liquids thanks to the lack of through-bores, the secure seal between the outer ring and glass and the O-ring.
Dane techniczne
Marka: MITUTOYO
Zakres pomiarowy, długość: 5 mm
Typ: flache Rückwand, edelsteingelagert
Rozdzielczość: 0,001 mm
Droga pomiarowa jednego obrotu wskazówki: 0,2 mm
Średnica zewnętrzna: 57 mm
Granica błędu: 0,01 mm
Średnica chwytu: 8 mm
Min./maks. siła mierzona: 0.4-1.5 N
Długość wałka: 16,9 mm
Grupa Wzorcowanie: C
Podziałka: 0,001 mm
Dalsze szczegóły
Hersteller-Teilenummer:
2119AB-10
