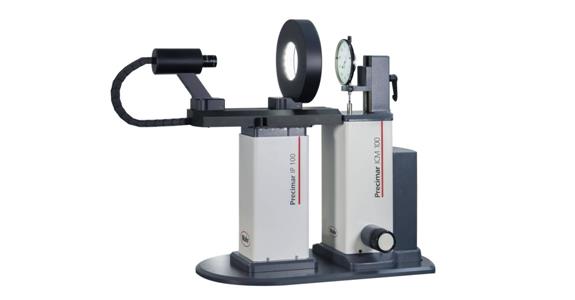

ZastosowanieFor calibrating dial gauges, lever gauge probes and precision pointers.
The Precimar MSW 100 controls the dial gauge tester, evaluates the camera image (scale or numerical display of specimen) and the reference measured values of the dial gauge tester as well as controlling any subsequent processes as part of the test equipment management.
The test sequence can be performed based on DIN, VDI, DKD or DAkkS regulations, various international standards or in accordance with internal factory specifications.
The deviations between the specimens are represented graphically during the test.
Wersja- Convenient, tool-free and intuitive operation with one hand
- Compliance with the Abbe comparator principle for maximum measurement accuracy
- Testing in accordance with international standards and regulations, such as DIN, VDL, GOST, BS, NF, ASME and JIS
- High-quality USB 3.0 industrial camera with high image quality and high dynamic range
- Robust, industrial-grade and daylight-insensitive LED light
- Digital readings can be read off directly - no cable connection to the measuring equipment is required
- Wide range of measuring equipment can be tested, including dial gauges with a diameter of up to 100 mm
- Nominal dimensions and tolerances of pre-programmed test equipment are available immediately
- Inductive probes from various manufacturers can be tested (manual)
- MPEE1 length measurement deviation (L in mm): ≤ (0.2 + L/250) [µm]
Dostawa1x RS232C zero modem cable
1x USB cable
1x support arm/clamp dia.12 mm
1x reducing clamping collet dia. 12 mm to dia. 8 mm
1x plug-in power supply
1x calibration certificate
Optional ICM IP software
