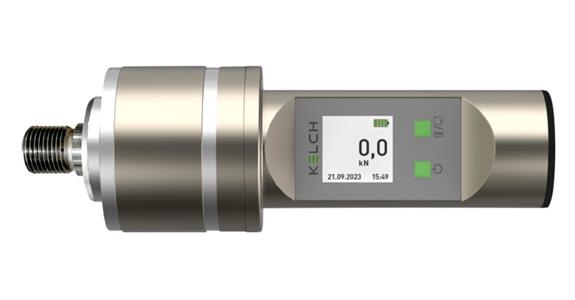

Basisgerät Safecontrol 4.0 100KN

Zastosowanie
Digital measuring system for measuring the pull-in forces of machine tool spindles as well as clamping tool extensions, reducers and zero-point clamping systems. For quality assurance, process and occupational safety.

Wersja

• One basic device for all adapters (HSK, PSC and SK)
• Measurements displayed on screen
• The display view adjusts to the position
• Data transfer via USB interface or Bluetooth (via free app for tablet + PC)
• Features available via free APP: Assign machine spindles via QR code, live transmission of measured values to the mobile device, manage machine spindles, display measured values as a CSV file and line diagram, statistical function, print measurement results, calibration monitoring

Zaleta

• only the basic device needs to be recalibrated
• regular inspections can reduce machine damage and the resulting follow-up costs

Dostawa
1x basic device
Functional description and test certificate
USB cable
Without case and tablet

Wskazówki
Measuring adapter must be ordered separately.
