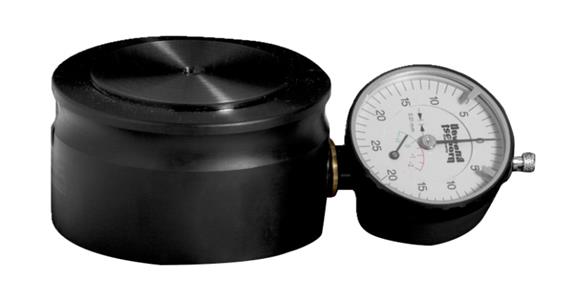

Zero point sensor with dial gauge resolution 0.01 mm

Zastosowanie
Define the reference point in the axial direction of the machine spindle (e.g. for milling) quickly and easily. Place the device on the workpiece and move the tool (e.g. milling cutter) on the sprung sensor surface until both dial gauge needles point to 0. The lower edge of the tool will now be exactly 50 +/- 0.01 mm above the surface of the workpiece. The dimension 50 mm is entered into the machine control unit.

Wersja
The basic body and the probe insert of the device are case-hardened (HRC 60 +/- 1)

Dostawa
With measurement log, in a wooden case
