CoAE Kleinsortiment MK5, Linkslauf

Zastosowanie
For efficient turning and milling of workpieces along their entire length without re-clamping with the highest accuracy.

Wersja

• Small assortment in wooden box
• Basic body with straight shank and hydraulic pressure compensation
• Max. workpiece weight 100 kg
• Turning range 13-100 mm
• Max. workpiece weight 100 kg
• Anti-clockwise direction of rotation

Zaleta

• For turning and milling with single clamping
• Balancing carrier disc, radially play-free
• Maximum concentricity deviation 0.015 mm for maximum precision
• Robust and consistent workpiece longitudinal stop on the front side by means of spring-loaded centring point
• Maximum flexibility thanks to universal replacement of the carrier disc and centring tip

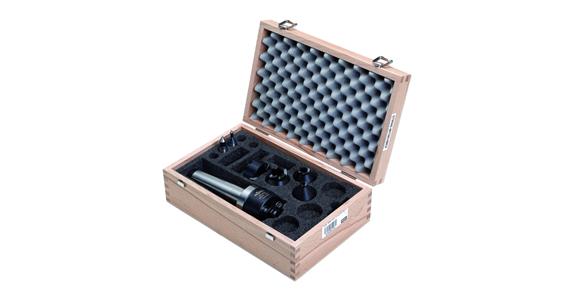

Dostawa
- In wooden box
- 1x basic body
- 4x revolving discs (clamping circle dia. 12, 20, 32, 50)
- 2x centring tips (centring dia. 6, 12)

Wskazówki
- Other sizes and designs on request
- With draw-off nut on request
