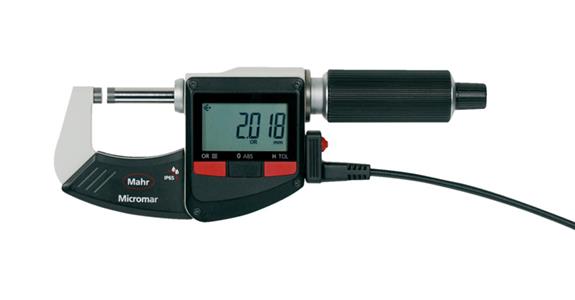

Digital micrometer Micromar 40 EWR measuring range 75-100 mm

Zastosowanie
For measuring e.g. shaft diameters, external dimensions on workpieces etc.

Wersja

• High-contrast digital display
• Fully hardened and ground stainless steel measuring spindle
• Carbide-reinforced measuring spindle and anvil
• Quick drive
• Ratchet tool at the front
• Functions: RESET (sets the display to zero), ABS (display can be set to zero without losing the reference to the ORIGIN), mm/inch, ORIGIN (measurement presetting), LOCK function (key lock), TOL (input of tolerances and warning limits), HOLD (measured value storage), DATA, bi-directional data interface (external querying and input of characteristic values as well as adjustment of individual function blocks via MarCom software)
• weitere Funktionen: ORIGIN (Maßvoreinstellung), TOL (Toleranz- und Warngrenzen-Eingabe), DATA

Zaleta
Thermally insulated painted steel frame

Dostawa
1x 3 V battery (type CR 2032)
1x operating instructions
1x case
1x setting gauge (from measuring range 25-50 mm)

Wskazówki
For setting gauges, see art. no. 1031579.
For connection cables, see art. no. 1035200 415-416.
For replacement batteries, see art. no. 1039900 102.

Software: MarCom Professional free download: www.mahr.com/marcom (only for Mahr data cables and wireless systems with USB and RS232 interface).
