2-Punkt-Messdorn 2-3 mm Hartmetallmesskontakte für Grundlochbohrung

Zastosowanie
For quick comparison measurements of bores during series inspection.

Wersja

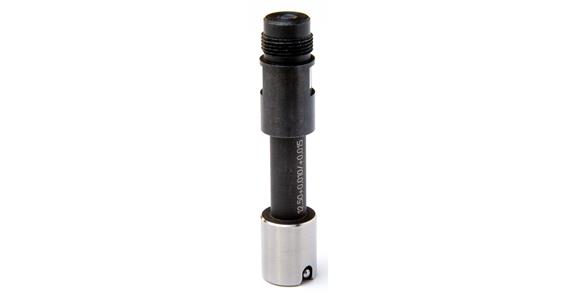

• Indicating plug gauge with two radially movable plungers with contact point, offset by 180°
• Hardened steel indicating plug gauge, carbide measuring contacts
• for dial gauges and dial indicators with a shank diameter of 8 mm

Zaleta

• ideal for series measurement
• high level of repeat accuracy, independent of user
• minimum measuring times
• individually adapted to the desired bore diameter and tolerance

Dostawa
OD 2-point indicating plug gauge
without display unit and device holder

Wskazówki
When ordering, the diameter to be measured and the tolerance must be specified (for example: 35 H7 or 35 +0.15/-0.01 mm).
Other variants (hard chrome-plated measuring sleeve, measuring contacts in ruby, diamond, hard chrome-plated, 3-point or other special versions) are available on request.
For device holder, see art no. 1033844 400-402
