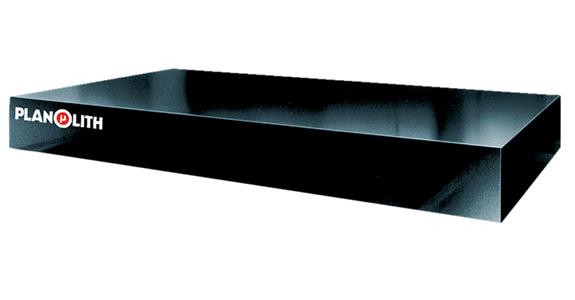

Hard stone measuring and control plate DIN 876/1 diamond-lapped 400x400x50 mm

Zastosowanie
For use in production and measuring as a basis for precise measuring tasks, e.g. height measuring devices.

Wersja

• Accuracy in accordance with DIN 876/1, diamond-lapped
• Diamond-lapped measuring surfaces guarantee long service life
• Measuring and control plates made of hard stone are manufactured in climate and humidity-controlled rooms
• Vickers hardness HV: 850-900
• Tensile bending strength: 13-22 N/mm²
• Absolute warping resistance, temperature-insensitive, hard and wear-resistant, electrically non-conductive, absolutely acid resistant
• Made of hard stone, diamond lapped, made of specially selected material of the highest quality, completely free of errors
• Colour: blue-black
• From a plate size of 400 x 400 mm including steel ball inserts

Dostawa
1x measuring plate
1x factory calibration certificate
Steel ball inserts (from plate size 400 x 400 mm)

Wskazówki
Mounted on pedestals, base frames and cabinet bases using steel ball inserts (included in the scope of delivery). The steel ball inserts are positioned on the bottom of the plate so that they fit base frames (art. no. 1036768) and individual supports (on request). The plates are also deliverable with T-grooves.
Service: Use our measuring plate processing service. Our fitters will come to you and perform follow-up work on site. No packaging, no transportation, no loss of working hours.
