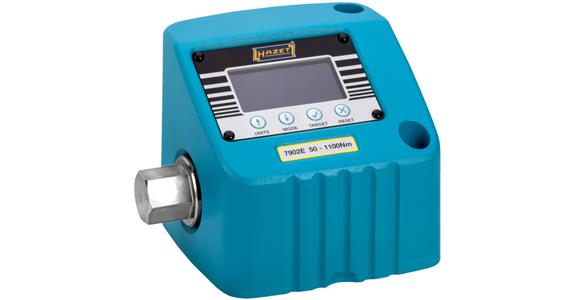

Elektronisches Drehmoment-Prüfgerät Messbereich 100-1000Nm 27 mm 6kant-Aufnahme

Zastosowanie
For testing and adjusting torque wrenches, calibrated measuring range in clockwise direction of rotation

Wersja

• Large, high-contrast, easy-to-read backlit LCD display, splash-proof display and membrane keypad
• 17 mm digits, with traffic light function for measured value evaluation and acoustic signal
• Robust aluminium housing
• Desired units can be configured
• Switchable torque display

  • 1.5-30 Nm: Nm, dNm, cNm, kgf.m, kgf.cm, gf.m, lbf.ft, lbf.in, ft.lb, in.lb, ozf.in, in.oz


  • 10-350 Nm: Nm, dNm, kgf.m, kgf.cm, lbf.ft, lbf.in, ft.lb, in.lb


  • 50-1,100 Nm: Nm, kgf.m, kgf.cm, lbf.ft, lbf.in, ft.lb, in.lb

Zaleta

• Off-grid operation via power bank (5 V/1 A)
• Simple entry of up to 15 different target values and the relevant permissible tolerance in the range of ± 1 % to ± 15 %
• Three measuring procedures

  • Automatic breakpoint detection (First Peak - click)


  • Peak value measurement (Final Peak - dial)


  • Tracked measured/display value (track)

Dostawa
Robust plastic case with soft foam insert
USB power supply including plug adapters for EU, UK, USA, AUS
2 m USB cable
With factory calibration certificate

Wskazówki
Fastening material not included
