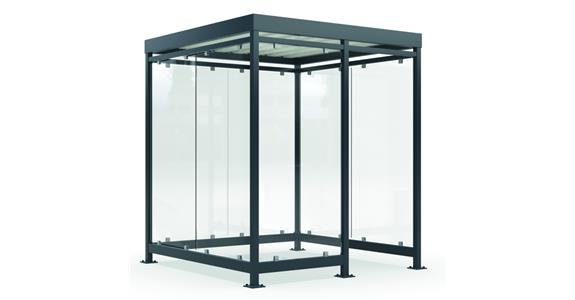

Raucherunterstand Premium V1 B 2165 mm x T 2165 mm x H 2510 mm RAL 7016

Zastosowanie
Attractive smoking shelter made of zinc-plated steel profiles and safety glass, easily visible from all sides.

Wersja

• Load-bearing frame construction made of profile pipes
• Flat roof (beamless roof system) consisting of two divided roof bars. Flat roof (beamless roof system) consisting of wraparound edge profile (150 mm) with internal, bituminous water channel
• Roof covering made of steel strip sheeting hot-dip galvanised on both sides and painted in colour similar to RAL 9002 grey-white
• Drainage occurs to the rear via the rear right-hand corner post with water spout (water outlet approx. 120 mm above the ground)
• 5 posts with base plates for anchoring.
• 2x back panels/2x left sidewalls, 2x right sidewalls and 1x draughtproof element at the front left made of transparent single-pane safety glass with glass holders attached.
• Entry is made via the right front side, entry dimensions approx. 955 mm.
• Corrosion protection: The whole construction is zinc-plated, primed and paint-coated or painted with environmentally friendly two-component paint.
• Snow load: Sk= 1.9 kN/m²
• Wind load: The construction is reliable for wind load zones I-III

Zaleta
Statics: The construction is type-approved

Dostawa
Incl. floor fastening material (anchors) made of stainless steel.
This may only be used for mounting in accordance with the foundation plans supplied.

Wskazówki
Delivery without unloading or handling. Access for 40-tonne lorries must be available.
Crane unloading available for an additional charge.
For self-unloading, a forklift or crane with a lifting capacity of 2.2 tonnes and 2.2 metre long forklift pockets or corresponding crane gear must be available.
